KBSGZY series 6kv, 11kv flameproof movable substation
Features of Products
The mineral product separates the explode migration transformer substation separates the explode migration transformer substation by the mineral product with the do-like transformer. The high-pressured load switch either the high pressure and the low pressure switch or the low pressure guarantees is composed. KBSGZY series dry type mining explosion isolation movable transformer substation is a kind of movable whole set distribution and transformation device. It is suitable for not only mines filled with firedamp mixed gas, grime and explosive gas, but also the gas and steam environment that can not erode metal and insulation.

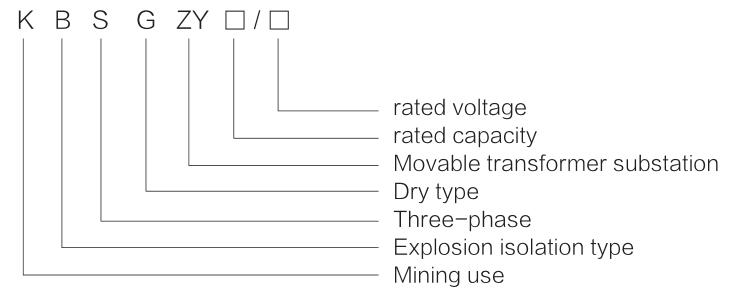

Transformer Type Meaning
Using environment and working condition
1、The installment highly does not surpass elevation 1000m, the special environment gives the explanation in addition
2、Amblent temperature:
- Highest air temperature+40℃;
- Highest daily average air temperature+30℃;
- Highest annual average air temperature+20℃;
- Lowest outdoor air temperature-5℃.
3、The surrounding air relative humidity is not bigger than 95%(+25℃ when)
4、In has the methane and the coal dust, also has the explosion hazard in the mine pit;
5、Does not have, the vibration as well as with the gradient does not surpass in 15° environment
6、Does not have sufficiently the dipping and the insulation gas and the steam;
7、No-water drop place;
8、The supply voltage profile is approximate to the sine wave;
9、The three-phase supply voltage approximate is symmetrical; (When extracts this condition stipulation, separate consultation)
Prouduct standard
GB 8286-2017 GB3836-2017
GB/T10228-2015 GB1094.11-2007

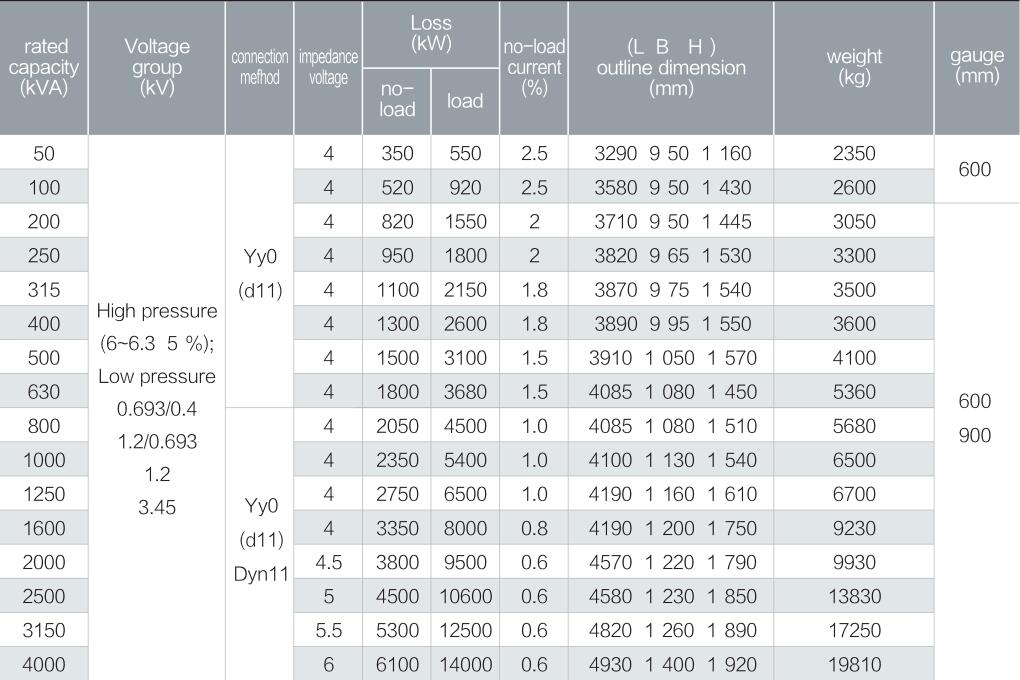

Tech data of 6kV KBSGZY series dry type mining explosion isolation movable transformer substation

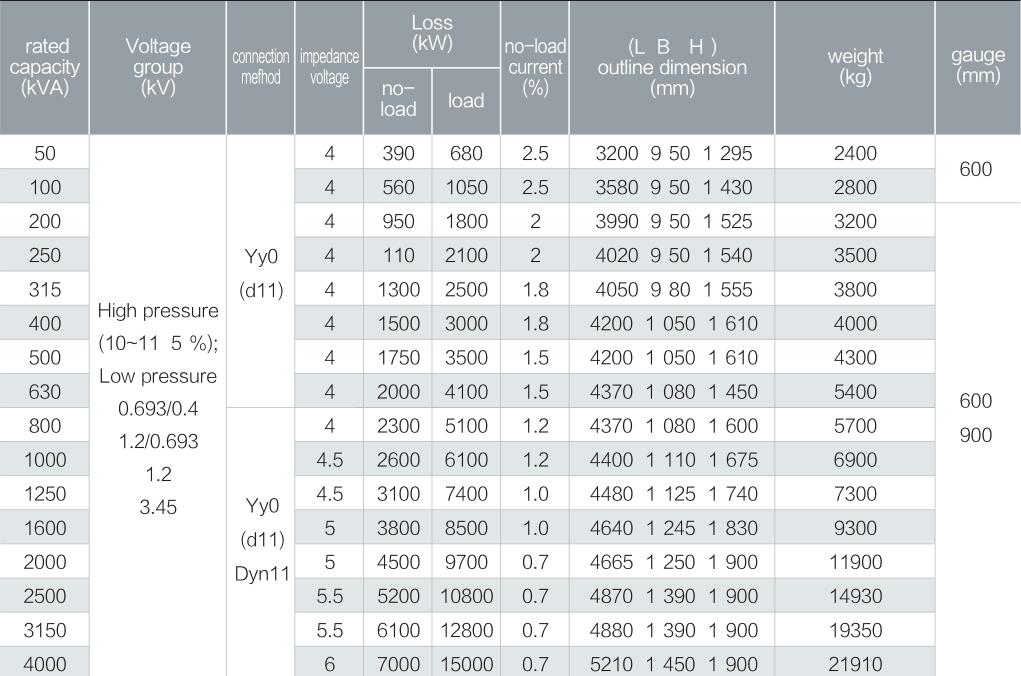

Tech data of 11kV KBSGZY series dry type mining explosion isolation movable transformer substation
